Atomos Shinobi 5.2 HDMI Underwater Housing by Nauticam
THE ATOMOS SHINOBI MONITOR
The Atomos Shinobi 4K HDMI and Shinobi SDI are exceptional monitors, featuring a bright 1000 nit 5.2" screen with 10 stops of dynamic range. The monitor includes a variety of exposure and focus assist tools to insure your footage is properly exposed with critical focus.
EXPOSURE TOOLS
The Shinobi exposure guides include a Waveform for luminance, RGB Parade for color balance, and Vector Scope for hue and saturation. These tools, especially useful for the underwater filmmaker, allow accurate and fast judging of exposure, even in the most uncooperative lighting scenarios.
FOCUS TOOLS
Critical focus can be achieved using various peaking tools. Focus Peaking Color displays the original color image with the sharpest areas outlined in a selectable color. Focus Peaking Mono provides the same overlay but on a monochrome image. Focus Assist Outline shows only the false color outline on a black background of the sharpest areas.
THE NAUT
The Nauticam NA-Shinobi-H follows suit with the strong foundation Nauticam has built around previous Atomos monitor/recorder housings. The NA-Shinobi supports both the Shinobi 4K HDMI monitor and the Shinobi SDI monitor.

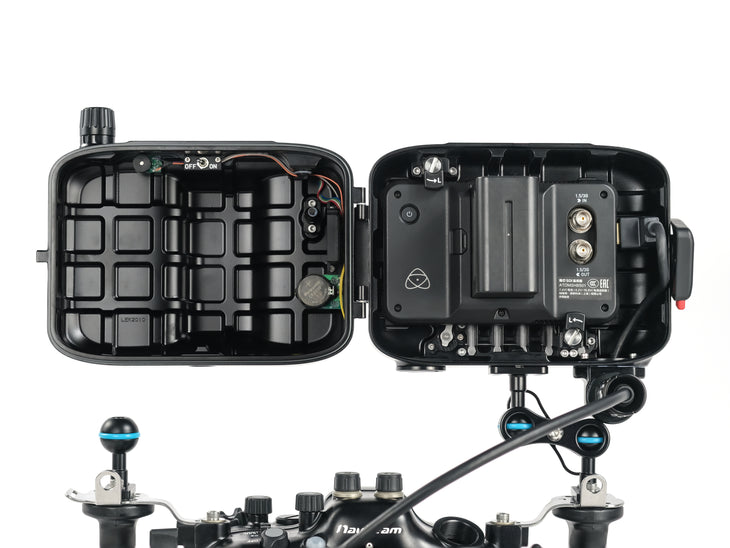

The Shinobi is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers.
The NA-Shinobi supports up to the NP-F970 size battery which provides approximately 4 hours of run time. A CR-2032 battery powers the vacuum check and leak detection system. When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.
Access to the touchscreen controls of the Shinobi are handled via a series of buttons and a selector knob beneath the screen of the housing.
| Body Material: | aluminum |
|---|---|
| Camera System: | Monitoren |
| Camera manufacturer: | Atomos |
| Monitor connection: | HDMI |
| Pane material: | Optical glass |
| Tripod connection: | 1 inch ball heads |
- Dimensions212mm x 141mm x 115mm (W x H x D)
- Weight in Air~1.67kg
- Weight in Water-0.18kg (with monitor and battery)
- Depth Rating100m
- Atomos Shinobi 5.2 HDMI Underwater Housing by Nauticam
- 25071 HDMI 1.4 Cable (A-D) in 0.75m Length (pre-installed)
- M25-M16 Step Down Adaptor (pre-installed)
- 25625 M16 Vacuum Valve II (pre-installed)
- Mounting Ball (pre-installed)
- Monitor Hood
- 25033 M16 Standard HDMI Bulkhead
- 90137 Housing O-Ring
- O-ring removal tool and lubricant
- 25036 HDMI (D-C) cable in 190mm length (for connection from HDMI bulkhead to camera)
- 25046 HDMI (D-D) cable in 200mm length (for connection from HDMI bulkhead to camera)
- CR2032 battery
- Allen Wrench Set
- Padded Travel case
Only the components of the item that are listed here will be delivered. Accessories and/or decoration shown in our images are for demonstration purposes only. In particular, we would like to point out that the purchase of an underwater housing does not include a monitor and often not a port nor all requiered cables. If you have any questions about the configuration of your system, do not hesitate to contact us.
